| Category: | Cranksets |
| Name: | Shimano FC-M730, Deore XT M730 |
| Brand: | Shimano |
| Primary Group: | Deore XT M730 |
| Model: | FC-M730 |
| Years: | 1986 - 1993 |
| Country: | Japan |
| Weight: | 730 grams (Spec) |
| Added By: | pete bugsy brown on 04/10/10 |
| Updated By: | MGTS on 11/22/12 |

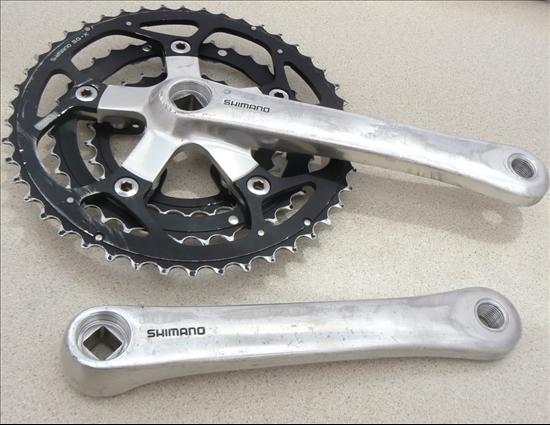

Additional Photos - click for full size |
|
|
| Chainring Count | Triple | BCD  | 110mm / 74mm |
| BB Style | Square Taper (ISO) | Pedal Threads | 9/16" x 20 (English) |
| BB Length | 117.5 or 122.5 | Flutes | None |
| Lengths | 165; 170; 175; 180 | Arm/Spider Material | Aluminum Alloy |
| Front Markings | Shimano | Back Markings | FC-M730 [length] [date-code] VIA Japan |
| Extractor Threading | 22x1mm (Standard) | | |
| Component Groups |
| Primary Group Name | Brand | Quick Info | Browse Group Components |
| Deore XT M730 Series | Shimano | 1986 - 1993, Mountain Bike | View 15 Components |
Shimano Model Number Prefix List:
| BB Bottom Bracket |
BL Brake Lever |
BR BRake |
| CB Coaster Brake |
CJ Cassette Joint |
CN ChaiN |
| CP Chain Protecto |
CR Chain Ring |
CS Cassette Sprockets |
| DF chain DeFlector |
DH Dynamo Hub |
FC Front Crank |
| FD Front Derailleur |
FE Fork Ends |
FH FreeHub |
| FS Front Suspension |
HB HuB |
HD HanDle bar |
| HP Head Parts (Head Set) |
HS Handle Stem |
IF Inter-3 Freehub |
| LP LamP |
MF Multi Freewheel |
PD PeDal |
| RD Rear Derailleur |
RH Rollerbrake Hub |
RM RiM |
| RR ReflectoRs |
RS Rear Suspension |
SB Shift Brake lever (Nexus, ?) |
| SC Speed Calculator (cycle computer) |
SF Single Freewheel Freilaufritzel |
SG Speed chanGe hub |
| SH SHoes |
SL Shift Lever Schalthebel |
SM SMall parts |
| SP Seat Post |
SQ Seat Quick release |
SS Single Sprocket |
| TL TooL |
WH WHeel
| ST Shift Brake Lever (STI, Rapid Fire, etc) |
