| Category: | Cranksets |
| Name: | Shimano FC-M900, XTR M900 |
| Brand: | Shimano |
| Primary Group: | XTR M900 |
| Model: | FC-M900 |
| Years: | Early 1990's - Mid 1990's |
| Country: | Japan |
| Added By: | JFischer on 06/02/11 |
| Updated By: | Tombo on 07/13/19 |

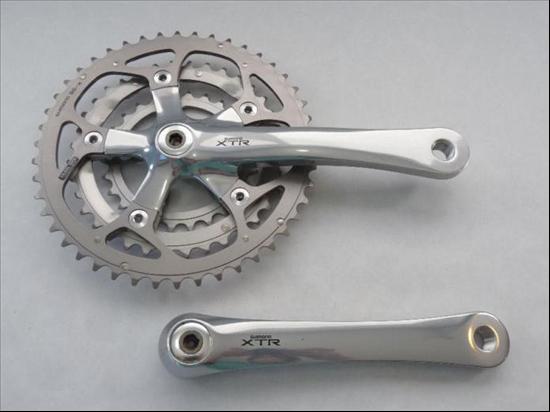

Additional Photos - click for full size |
|
|
| Chainring Count | Triple | BCD  | 110mm / 74mm |
| BB Style | Square Taper (JIS) | Pedal Threads | 9/16" x 20 (English) |
| BB Length | 107mm (47.5mm chainline), 113mm (50mm chainline) | Flutes | None |
| Lengths | 170; 175 | Arm/Spider Material | Aluminum Alloy |
| Front Markings | Shimano XTR | Back Markings | FC-M900 VIA Japan [length] [datecode - sticker] |
| Extractor Threading | 22x1mm (Standard) | | |
| Component Groups |
| Primary Group Name | Brand | Quick Info | Browse Group Components |
| XTR M900 | Shimano | 1992 - 1995, Mountain Bike | View 13 Components |
| Details: Designed to be a complete race oriented mountain bike group, the new 8sp SIS compatible XTR series was introduced in 1992. A slight upgrade with M910 series parts was released in 1995 before the group was completely upgrade in 1996 with the introduction of the M950 series. |
Shimano Model Number Prefix List:
| BB Bottom Bracket |
BL Brake Lever |
BR BRake |
| CB Coaster Brake |
CJ Cassette Joint |
CN ChaiN |
| CP Chain Protecto |
CR Chain Ring |
CS Cassette Sprockets |
| DF chain DeFlector |
DH Dynamo Hub |
FC Front Crank |
| FD Front Derailleur |
FE Fork Ends |
FH FreeHub |
| FS Front Suspension |
HB HuB |
HD HanDle bar |
| HP Head Parts (Head Set) |
HS Handle Stem |
IF Inter-3 Freehub |
| LP LamP |
MF Multi Freewheel |
PD PeDal |
| RD Rear Derailleur |
RH Rollerbrake Hub |
RM RiM |
| RR ReflectoRs |
RS Rear Suspension |
SB Shift Brake lever (Nexus, ?) |
| SC Speed Calculator (cycle computer) |
SF Single Freewheel Freilaufritzel |
SG Speed chanGe hub |
| SH SHoes |
SL Shift Lever Schalthebel |
SM SMall parts |
| SP Seat Post |
SQ Seat Quick release |
SS Single Sprocket |
| TL TooL |
WH WHeel
| ST Shift Brake Lever (STI, Rapid Fire, etc) |
