| Category: | Cranksets |

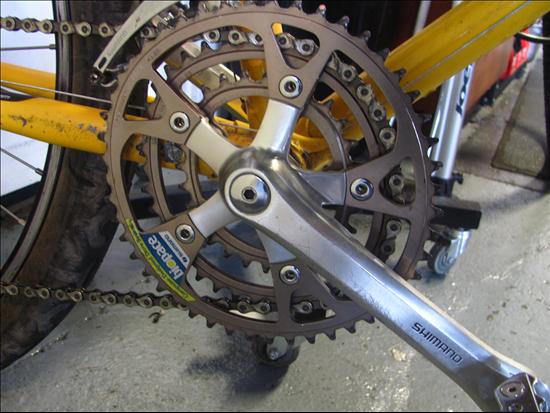

| Name: | Shimano FC-6206 Biopace, 600EX (Triple version of FC-6207) |
| Brand: | Shimano |
| Primary Group: | 600EX |
| Model: | FC-6206 Biopace |
| Years: | 1984 - 1987 |
| Country: | Japan |
| Weight: | 700 grams (Spec),
Shimano catalog 1984, page 107 |
| Added By: | JFischer on 06/12/09 |
| Updated By: | ThermionicScott on 03/19/19 |
Additional Photos - click for full size |
|
 Verify Component Photos |
|
| Chainring Count | Triple | BCD  | 130mm / 110mm |
| BB Style | Square Taper (JIS) | Pedal Threads | 14mm x 1.25mm (French);
9/16" x 20 (English) |
| BB Length | BSC (68mm) 121.5mm, ITAL (70mm) 124.5mm | Flutes | None |
| Lengths | 165; 170; 175; 180 | Arm/Spider Material | Aluminum Alloy |
| Front Markings | Shimano | Back Markings | FC-6206 VIA Japan [length] [date code] |
| Extractor Threading | 22x1mm (Standard) | | |
| Component Groups |
| Primary Group Name | Brand | Quick Info | Browse Group Components |
| 600EX, 6200 series | Shimano | 1978 - 1987, Road Race | View 49 Components |
| Details: The Shimano 600EX groupset was made in a multitude of variations and generations. Often, more than one variation was being produced at the same time. Included in the Shimano 600EX groupsets is the easily recognizable Arabesque group with detailed engravings and designs. The 600EX group went from friction shifting at its introduction, to 6 speed SIS shifting later in the 1980's. |
| Group Name | Brand | Quick Info | Browse Group Components |
| Deore XT M700 Series | Shimano | 1983 - 1986, Touring & MTB | View 11 Components |
Shimano Model Number Prefix List:
| BB Bottom Bracket |
BL Brake Lever |
BR BRake |
| CB Coaster Brake |
CJ Cassette Joint |
CN ChaiN |
| CP Chain Protecto |
CR Chain Ring |
CS Cassette Sprockets |
| DF chain DeFlector |
DH Dynamo Hub |
FC Front Crank |
| FD Front Derailleur |
FE Fork Ends |
FH FreeHub |
| FS Front Suspension |
HB HuB |
HD HanDle bar |
| HP Head Parts (Head Set) |
HS Handle Stem |
IF Inter-3 Freehub |
| LP LamP |
MF Multi Freewheel |
PD PeDal |
| RD Rear Derailleur |
RH Rollerbrake Hub |
RM RiM |
| RR ReflectoRs |
RS Rear Suspension |
SB Shift Brake lever (Nexus, ?) |
| SC Speed Calculator (cycle computer) |
SF Single Freewheel Freilaufritzel |
SG Speed chanGe hub |
| SH SHoes |
SL Shift Lever Schalthebel |
SM SMall parts |
| SP Seat Post |
SQ Seat Quick release |
SS Single Sprocket |
| TL TooL |
WH WHeel
| ST Shift Brake Lever (STI, Rapid Fire, etc) |
