| Category: | Brakes |

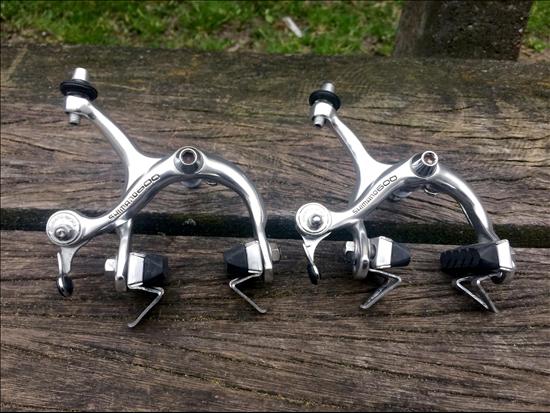

| Name: | Shimano BR-6207, 600EX (standard reach) |
| Brand: | Shimano |
| Primary Group: | 600EX |
| Model: | BR-6207 |
| Years: | 1984 - 1987 |
| Country: | Japan |
| Weight: | 353 grams (Spec) |
| Added By: | JFischer on 11/18/09 |
| Updated By: | yipiemme on 03/20/20 |
Additional Photos - click for full size |
|
 Verify Component Photos |
|
Design Category  | Single Pivot | Cable Adjuster | |
| Quick Release | Yes | Attachment Bolt Type | Exterior or Recessed |
| Cable Attachment Bolt | 5mm Allen Key | Front of Arm Markings | Shimano 600 |
| Back of Arm Markings | Shimano BR-6207 | Reach Category | Short reach; Standard Reach |
| Min Reach | 47mm | Max Reach | 57mm |
| Additional Resources |
| Resources: |  Reference & Charts Catalogs |
| Component Variations | View Detailed List Manage Variations |
| Variations of Component exist (Component is 1 of 3) | Brand | Group |
| Shimano BR-6207, 600EX (short reach) | Shimano | 600EX |
| Shimano BR-6208 600EX | Shimano | 600EX |
| Component Groups |
| Primary Group Name | Brand | Quick Info | Browse Group Components |
| 600EX, 6200 series | Shimano | 1978 - 1987, Road Race | View 49 Components |
| Details: The Shimano 600EX groupset was made in a multitude of variations and generations. Often, more than one variation was being produced at the same time. Included in the Shimano 600EX groupsets is the easily recognizable Arabesque group with detailed engravings and designs. The 600EX group went from friction shifting at its introduction, to 6 speed SIS shifting later in the 1980's. |
Shimano Model Number Prefix List:
| BB Bottom Bracket |
BL Brake Lever |
BR BRake |
| CB Coaster Brake |
CJ Cassette Joint |
CN ChaiN |
| CP Chain Protecto |
CR Chain Ring |
CS Cassette Sprockets |
| DF chain DeFlector |
DH Dynamo Hub |
FC Front Crank |
| FD Front Derailleur |
FE Fork Ends |
FH FreeHub |
| FS Front Suspension |
HB HuB |
HD HanDle bar |
| HP Head Parts (Head Set) |
HS Handle Stem |
IF Inter-3 Freehub |
| LP LamP |
MF Multi Freewheel |
PD PeDal |
| RD Rear Derailleur |
RH Rollerbrake Hub |
RM RiM |
| RR ReflectoRs |
RS Rear Suspension |
SB Shift Brake lever (Nexus, ?) |
| SC Speed Calculator (cycle computer) |
SF Single Freewheel Freilaufritzel |
SG Speed chanGe hub |
| SH SHoes |
SL Shift Lever Schalthebel |
SM SMall parts |
| SP Seat Post |
SQ Seat Quick release |
SS Single Sprocket |
| TL TooL |
WH WHeel
| ST Shift Brake Lever (STI, Rapid Fire, etc) |
