| Category: | Brakes |

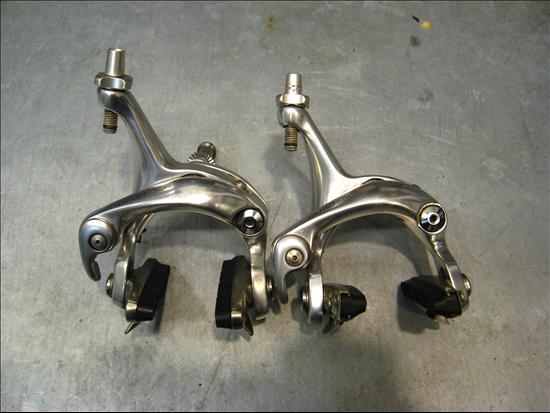

| Name: | Shimano BR-7700, Dura Ace 7700 |
| Brand: | Shimano |
| Primary Group: | Dura-Ace 7700 |
| Model: | BR-7700 |
| Years: | 1997 - 2002 |
| Country: | Japan |
| Added By: | MGTS on 03/09/15 |
| Updated By: | MGTS on 03/09/15 |
Additional Photos - click for full size |
|
 Verify Component Photos |
|
Design Category  | Dual Pivot | Cable Adjuster | Bump and divot |
| Quick Release | Yes - at cable attachment | Attachment Bolt Type | Recessed Allen Key |
| Cable Attachment Bolt | 5mm Allen Key | Front of Arm Markings | Dura-Ace |
| Back of Arm Markings | BR-7700 SHIMANO JAPAN VIA [date stamp] | Reach Category | Short reach |
| Min Reach | 39mm | Max Reach | 49mm |
| Additional Resources |
| Resources: |  Reference & Charts Catalogs |
| Component Groups |
| Primary Group Name | Brand | Quick Info | Browse Group Components |
| Dura-Ace 7700 Series | Shimano | 1997 - 2003, Road Race | View 14 Components |
Details: Shimano always leads with Dura-Ace. In 1997, 9 speed was introduced. They kept with the shift cables coming out of the side of the STI levers and greatly improved the shift quality. Ultegra (600) and 105 followed suit. 9 speed uses the same freehub body size as 8 speed.
|
Shimano Model Number Prefix List:
| BB Bottom Bracket |
BL Brake Lever |
BR BRake |
| CB Coaster Brake |
CJ Cassette Joint |
CN ChaiN |
| CP Chain Protecto |
CR Chain Ring |
CS Cassette Sprockets |
| DF chain DeFlector |
DH Dynamo Hub |
FC Front Crank |
| FD Front Derailleur |
FE Fork Ends |
FH FreeHub |
| FS Front Suspension |
HB HuB |
HD HanDle bar |
| HP Head Parts (Head Set) |
HS Handle Stem |
IF Inter-3 Freehub |
| LP LamP |
MF Multi Freewheel |
PD PeDal |
| RD Rear Derailleur |
RH Rollerbrake Hub |
RM RiM |
| RR ReflectoRs |
RS Rear Suspension |
SB Shift Brake lever (Nexus, ?) |
| SC Speed Calculator (cycle computer) |
SF Single Freewheel Freilaufritzel |
SG Speed chanGe hub |
| SH SHoes |
SL Shift Lever Schalthebel |
SM SMall parts |
| SP Seat Post |
SQ Seat Quick release |
SS Single Sprocket |
| TL TooL |
WH WHeel
| ST Shift Brake Lever (STI, Rapid Fire, etc) |
