| Category: | Brakes |
| Name: | Shimano BR-M453, Deore LX |
| Brand: | Shimano |
| Primary Group: | Deore LX M550 Series |
| Model: | BR-M453 |
| Years: | Early 1990's - Mid 1990's |
| Country: | Japan |
| Added By: | JFischer on 01/05/10 |
| Updated By: | MGTS on 04/10/13 |

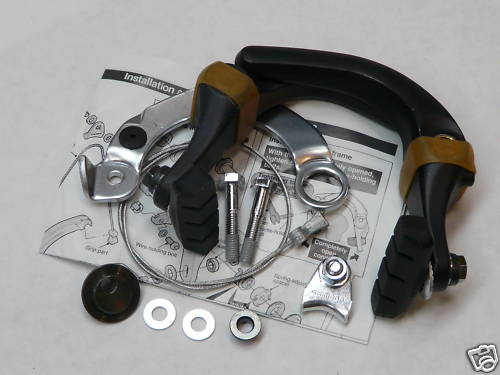

Additional Photos - click for full size |
|
|
Design Category  | U-brake | Cable Adjuster | No |
| Quick Release | Yes - Straddle Cable | Attachment Bolt Type | Dual Post Braze-on |
| Cable Attachment Bolt | Straddle Cable - Single Ended | Front of Arm Markings | |
| Back of Arm Markings | BR-M453 | Reach Category | U-brake |
| Min Reach | | Max Reach | |
| Additional Resources |
| Resources: |  Reference & Charts Catalogs |
| Component Groups |
| Primary Group Name | Brand | Quick Info | Browse Group Components |
| Deore LX M550 Series | Shimano | 1990 - 1992, Mountain Bike | View 9 Components |
| Details: Deore LX was the 3th highest grouppo in 1990 ranked below Deore DX, then Deore XT, After XTR was introduced and Deore DX was dropped it would remain the 3rd highest grouppo in the Shimano MTB line up. Time period is 1990 onward. |
| Group Name | Brand | Quick Info | Browse Group Components |
| Exage 500LX | Shimano | Sport & Recreation | View 4 Components |
Shimano Model Number Prefix List:
| BB Bottom Bracket |
BL Brake Lever |
BR BRake |
| CB Coaster Brake |
CJ Cassette Joint |
CN ChaiN |
| CP Chain Protecto |
CR Chain Ring |
CS Cassette Sprockets |
| DF chain DeFlector |
DH Dynamo Hub |
FC Front Crank |
| FD Front Derailleur |
FE Fork Ends |
FH FreeHub |
| FS Front Suspension |
HB HuB |
HD HanDle bar |
| HP Head Parts (Head Set) |
HS Handle Stem |
IF Inter-3 Freehub |
| LP LamP |
MF Multi Freewheel |
PD PeDal |
| RD Rear Derailleur |
RH Rollerbrake Hub |
RM RiM |
| RR ReflectoRs |
RS Rear Suspension |
SB Shift Brake lever (Nexus, ?) |
| SC Speed Calculator (cycle computer) |
SF Single Freewheel Freilaufritzel |
SG Speed chanGe hub |
| SH SHoes |
SL Shift Lever Schalthebel |
SM SMall parts |
| SP Seat Post |
SQ Seat Quick release |
SS Single Sprocket |
| TL TooL |
WH WHeel
| ST Shift Brake Lever (STI, Rapid Fire, etc) |
