Shimano BR-5000, Sante
Back
Report

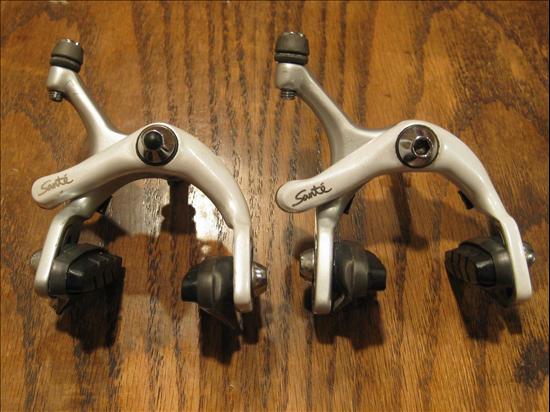

Main Photo
Category:  Brakes
Name:  Shimano BR-5000, Sante
Brand:  Shimano
Primary Group:  Sante
Model:  BR-5000
Years:  1988
Country:  Japan
Weight:  310 grams
Added By: JFischer on 10/10/07
Updated By: Slider74 on 08/29/19
Additional Photos - click for full size
Shimano BR-5000, SanteShimano BR-5000, SanteShimano BR-5000, Sante
Design Category Single PivotCable AdjusterInfinite
Quick Release NoAttachment Bolt TypeRecessed Allen Key
Cable Attachment Bolt5mm Allen KeyFront of Arm MarkingsSante
Back of Arm MarkingsBR-5000Reach CategoryStandard Reach
Min Reach39mmMax Reach49mm
General Information
Shimano's Pearl White component group from the late 80's.  One of the few Shimano brakes from the late 80's without a quick release.  The release on this setup was on the brake lever.
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogs
Component Groups
Primary Group NameBrandQuick InfoBrowse Group Components
SanteShimano1987 - 1988, Road RaceView 11 Components
Details:  Introduced after the Aero style components in the mid 1980s, Sante was positioned below Dura Ace and above Ultegra 600. This group was intended to be a stylish semi Pro level package.
Brand Information(click to expand)

Shimano Model Number Prefix List:

BB Bottom Bracket BL Brake Lever BR BRake
CB Coaster Brake CJ Cassette Joint CN ChaiN
CP Chain Protecto CR Chain Ring CS Cassette Sprockets
DF chain DeFlector DH Dynamo Hub FC Front Crank
FD Front Derailleur FE Fork Ends FH FreeHub
FS Front Suspension HB HuB HD HanDle bar
HP Head Parts (Head Set) HS Handle Stem IF Inter-3 Freehub
LP LamP MF Multi Freewheel PD PeDal
RD Rear Derailleur RH Rollerbrake Hub RM RiM
RR ReflectoRs RS Rear Suspension SB Shift Brake lever (Nexus, ?)
SC Speed Calculator (cycle computer) SF Single Freewheel Freilaufritzel SG Speed chanGe hub
SH SHoes SL Shift Lever Schalthebel SM SMall parts
SP Seat Post SQ Seat Quick release SS Single Sprocket
TL TooL WH WHeel ST Shift Brake Lever (STI, Rapid Fire, etc)
