VeloBase.com - Component: Campagnolo Triomphe

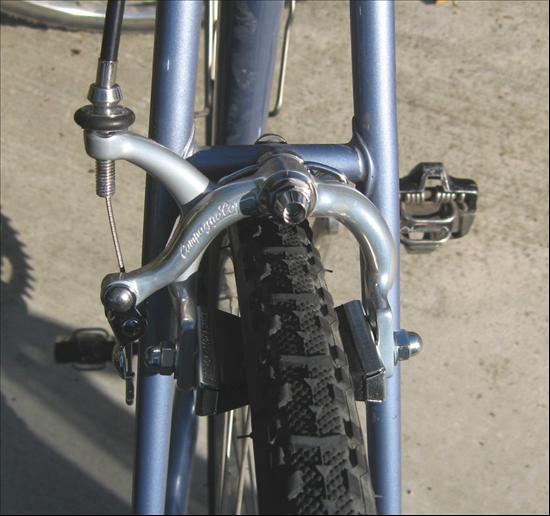

Campagnolo Triomphe

Category:	Brakes
Name:	Campagnolo Triomphe
Brand:	Campagnolo
Primary Group:	Triomphe
Model:
Years:	1984 - ?
Country:	Italy
Added By:	onespeedbiker on 11/10/11
Updated By:	onespeedbiker on 05/22/14
Additional Photos - click for full size

Design Category	Single Pivot	Cable Adjuster	Bump and divot
Quick Release	Yes	Attachment Bolt Type	Recessed Allen Key
Cable Attachment Bolt	Wrench	Front of Arm Markings	"Campagnolo" - script
Back of Arm Markings		Reach Category	Long Reach
Min Reach	47mm	Max Reach	55mm

General Information
Often confused with Victory or Nuovo Record. Locknut and round cross-section of arms differentiate it from Victory, and the linkage quick release lever different from Nuovo Record. Most Triomphe and other C-Record era brakes had infinite adjusters (see below linked in Component Variation, however there was this version that included the divot and bump adjuster (the same as Nuovo Record) found on a small number of Triomphe. This is also the "long reach" version, which today would be standard; my caliper says they have 55mm reach, which is 3mm longer than the catalog (the 47mm min reach is correct) .
Quality:		Rarity:

See Incorrect Information? Log-in to submit report.

Additional Resources
Resources:	Reference & Charts Catalogs External Resources

Component Variations	View Detailed List Manage Variations
Variations of Component exist (Component is 1 of 2)	Brand	Group
Campagnolo 915/000, Triomphe	Campagnolo	Triomphe

Component Groups
Primary Group Name	Brand	Quick Info	Browse Group Components
Triomphe	Campagnolo	1985 - , Sport & Recreation	View 15 Components
Details: The Victory group was introduced in 1985, the Triomphe group first appeared in Campagnolo catalogs in 1986. Both groups were discontinued in the late 1980's and replaced with Athena and the new wave of Campagnolo mid-range groupsets. Triomphe and Victory were designed not only as a mid-level component but also as a legacy design to those that preferred the old Gran Sport / Nuovo Record (=> Triomphe) and Nuovo Record / Super Record (=> Victory) designs over the new C-Record.
