Category:  Bottom Brackets

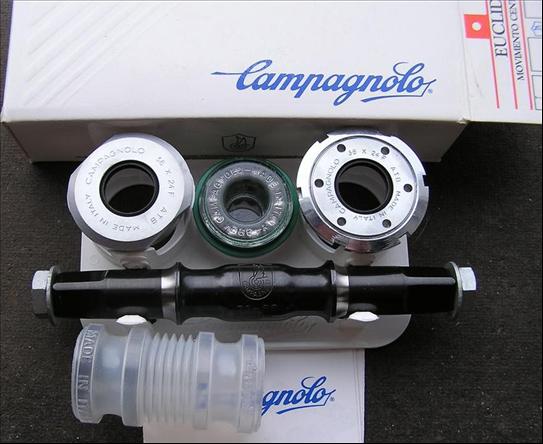

Name:  Campagnolo M0H0, Euclid
Brand:  Campagnolo
Primary Group:  Euclid
Model:  M0H0
Years:  Early 1990's
Country:  Italy
Added By: JFischer on 08/13/08
Updated By: JFischer on 11/13/10
Additional Photos - click for full size
Campagnolo M0H0, EuclidCampagnolo M0H0, EuclidCampagnolo M0H0, Euclid
Bearing Size/Count per side1/4" / 11x11Spindle Markings[shield logo] [70/68]-SS X3-M
Fixed Cup MarkingsCampagnolo [threading] ATB Made in ItalyAdjustable Cup MarkingsCampagnolo [threading] ATB Made in Italy
Spindle StyleSquare Taper (ISO)Axle MaterialSteel
Available ThreadingsEnglish/ISO: 1.370 x 24;
Italian: 36mm x 24
Length(s)132mm, 136mm, 140mm
Tools NeededSpanner, Locknut Wrench and Fixed Cup Wrench
General Information

Bottom Bracket with symmetric axle 132mm.  Some examples (if not all) had what was called a "triple grease injector" system.  Grease was injected into the hollow BB axle from one side, and then it would be pushed out during use from a hole in the center of the axle. This grease would make its way to the bearings through the plastic sleeve.

Also available:-

M0H0      Bottom Bracket with asymmetric axle (+4mm right hand) 136mm.

M0H0      Bottom Bracket with increased asymmetric axle 140mm.

Quality:Rarity:
