| Category: | Chainrings |

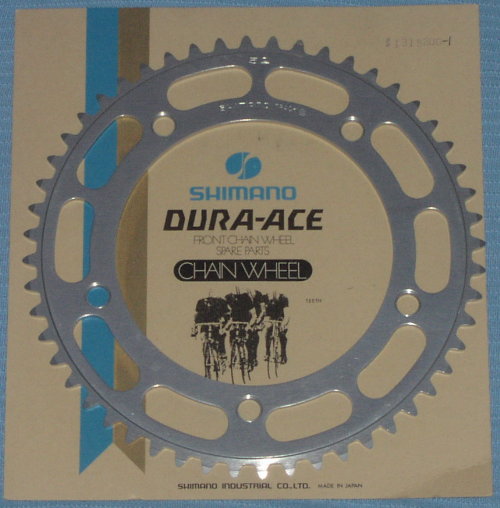

| Name: | Shimano Dura-Ace 7500 A-Type track ring (NJS) |
| Brand: | Shimano |
| Primary Group: | Dura-Ace 7500 |
| Model: | FC-7500 (A-Type) |
| Years: | Late 1970's - Early 1980's |
| Country: | Japan |
| Added By: | JFischer on 02/19/10 |
| Updated By: | bmarsha on 03/26/17 |
Additional Photos - click for full size |
|
 Verify Component Photos |
|
| Identifying Marks | Shimano Track (NJS) | BCD  | 151 |
| Tooth Count Range | 44-55 | Ring Position | Single Ring |
| Chain Pitch | Half Inch (modern standard) | Chain Width | 1/8" |
| Material | Aluminum | | |
| Additional Resources |
| Resources: |  Reference & Charts Catalogs |
| Component Variations | View Detailed List Manage Variations |
| Variations of Component exist (Component is 1 of 2) | Brand | Group |
| Shimano Dura-Ace 7500 B-Type track ring (NJS) | Shimano | Dura-Ace 7500 |
| Component Groups |
| Primary Group Name | Brand | Quick Info | Browse Group Components |
| Dura-Ace 7500 | Shimano | 1977 - 1984, Track | View 9 Components |
| Details: The Dura-Ace 7500 group is a track / fixed gear groupset produced by Shimano at approximately the same time as their Dura-Ace 10 group. The 7500 series however did not use the 10-pitch design, but a standard chain and tooth size. |
Shimano Model Number Prefix List:
| BB Bottom Bracket |
BL Brake Lever |
BR BRake |
| CB Coaster Brake |
CJ Cassette Joint |
CN ChaiN |
| CP Chain Protecto |
CR Chain Ring |
CS Cassette Sprockets |
| DF chain DeFlector |
DH Dynamo Hub |
FC Front Crank |
| FD Front Derailleur |
FE Fork Ends |
FH FreeHub |
| FS Front Suspension |
HB HuB |
HD HanDle bar |
| HP Head Parts (Head Set) |
HS Handle Stem |
IF Inter-3 Freehub |
| LP LamP |
MF Multi Freewheel |
PD PeDal |
| RD Rear Derailleur |
RH Rollerbrake Hub |
RM RiM |
| RR ReflectoRs |
RS Rear Suspension |
SB Shift Brake lever (Nexus, ?) |
| SC Speed Calculator (cycle computer) |
SF Single Freewheel Freilaufritzel |
SG Speed chanGe hub |
| SH SHoes |
SL Shift Lever Schalthebel |
SM SMall parts |
| SP Seat Post |
SQ Seat Quick release |
SS Single Sprocket |
| TL TooL |
WH WHeel
| ST Shift Brake Lever (STI, Rapid Fire, etc) |
