Category: | Rear Derailleurs |
Name: | Shimano RD-5000, Sante |
Brand: | Shimano |
Primary Group: | Sante |
Model: | RD-5000 |
Years: | 1987 - 1988 |
Country: | Japan |
Weight: | 191 grams |
Added By: | JFischer on 10/29/07 |
Updated By: | Slider74 on 08/29/19 |

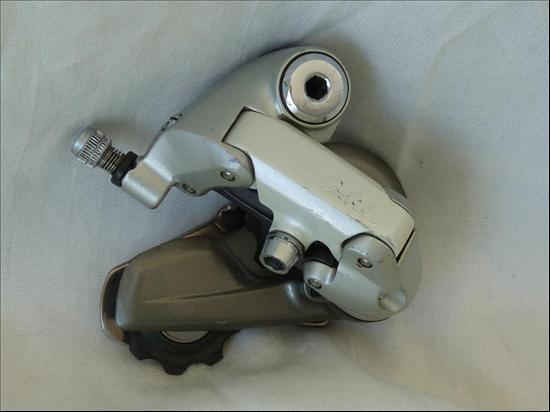

Additional Photos - click for full size |
|
|
Outer Plate Markings | Sante | Inner Plate Markings | Shimano VIA RD-5000 JAPAN |
Material | Aluminum Alloy | Design Category | Slant parallelogram |
Attachment Bolt Size | 5mm Allen Key | Cable Attachment Bolt Size | 5mm Allen Key |
Shifting Systems | Shimano SIS Shimano STI Friction | Cable Adjuster | Yes |
Cage Length | Short | Max Cog Size | 24 |
Max Chain Wrap | 24T | |   |
Additional Resources |
Resources: | Reference & ChartsCatalogs |
Component Variations | View Detailed List Manage Variations |
Variations of Component exist (Component is 1 of 2) | Brand | Group |
Shimano RD-5001-LS, Sante | Shimano | Sante |
Component Groups |
Primary Group Name | Brand | Quick Info | Browse Group Components |
Sante | Shimano | 1987 - 1988, Road Race | View 11 Components |
Details: Introduced after the Aero style components in the mid 1980s, Sante was positioned below Dura Ace and above Ultegra 600. This group was intended to be a stylish semi Pro level package. |
Shimano Model Number Prefix List:
BB Bottom Bracket |
BL Brake Lever |
BR BRake |
CB Coaster Brake |
CJ Cassette Joint |
CN ChaiN |
CP Chain Protecto |
CR Chain Ring |
CS Cassette Sprockets |
DF chain DeFlector |
DH Dynamo Hub |
FC Front Crank |
FD Front Derailleur |
FE Fork Ends |
FH FreeHub |
FS Front Suspension |
HB HuB |
HD HanDle bar |
HP Head Parts (Head Set) |
HS Handle Stem |
IF Inter-3 Freehub |
LP LamP |
MF Multi Freewheel |
PD PeDal |
RD Rear Derailleur |
RH Rollerbrake Hub |
RM RiM |
RR ReflectoRs |
RS Rear Suspension |
SB Shift Brake lever (Nexus, ?) |
SC Speed Calculator (cycle computer) |
SF Single Freewheel Freilaufritzel |
SG Speed chanGe hub |
SH SHoes |
SL Shift Lever Schalthebel |
SM SMall parts |
SP Seat Post |
SQ Seat Quick release |
SS Single Sprocket |
TL TooL |
WH WHeel
| ST Shift Brake Lever (STI, Rapid Fire, etc) |
