Cinelli 1R (1/Record) edition Rossin
Back
Report

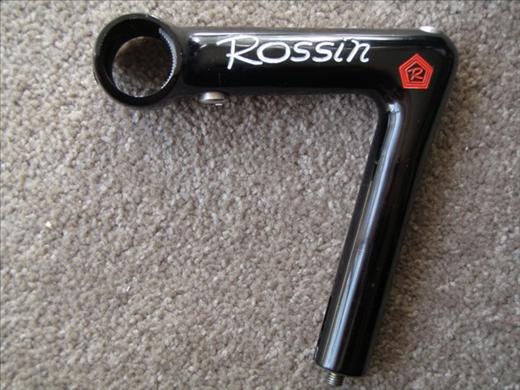

Main Photo
Category:  Stems
Name:  Cinelli 1R (1/Record) edition Rossin
Brand:  Cinelli
Model:  1R
Years:  1980's
Country:  Italy
Added By: Tombo on 05/01/16
Updated By: Tombo on 05/01/16
Additional Photos - click for full size
Cinelli 1R (1/Record) edition RossinCinelli 1R (1/Record) edition Rossin
 Verify Component Photos
MaterialAluminumMarkingsCinelli on top of extension, winged C logo on front
Bar Clamp Size 26.4Quill Size 22.2
Expander Style ConicalExpander Bolt Size6mm Allen Key
Binder Bolt Size 6mm Allen Key
General Information
The 1R along with the similar designed XA aero styled stems from Cinelli were introduced in the late 1970's and 1980's.  The 1R's bar clamp design is different from that of the XA and other cinelli stems.  Its bolt pushes a plate up against the bar from the back side, securing the bar in place.
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogsExternal Resources
Component VariationsView Detailed List  Manage Variations
Variations of Component exist (Component is 1 of 3)BrandGroup
Cinelli 1R (1/Record)Cinelli
Cinelli 1R (1/Record, early version)Cinelli
Brand Information(click to expand)
A true icon in the cycling industry, Cinelli is well known for their stems and handlebars which came as standard equipment on countless quality European brand bicycles, however they are also known to have made some of the most sought after lightweights by collectors and riders alike the world over.  Few brands can meet, let alone exceed, the level of workmanship and ride quality of Cinelli frames, even those from the 1950's.
