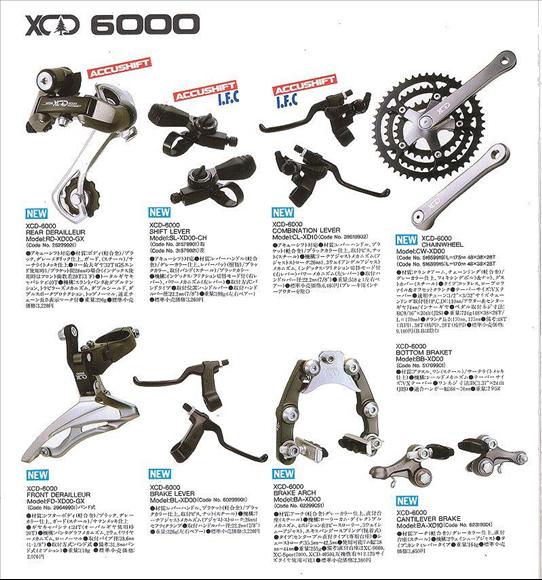

General Info: Suntour XCD 6000
Rear Derailleur: XCD 6000 RD-XD00-GX gray
"knuckles" with Suntour XCD 6000 printed on a black link
Front Derailleur: XCD 6000 FD-XD00-GX
Suntour XCD printed on the body, black body and clamp
Shifters: SL-XD00-CH, index/friction rear,
steel handlebar clamp, large covers on the levers also see brake levers for
brake shift lever combination
Hubs: XCD 6000 HB-XD 10 (nutted front and
rear, 36 holes, freewheel style, 126mm or 130 mm rear) or HB-XD00
(quick release hubs, 36 holes, 126mm or 130mm rear, freewheel style) all
hubs have small XCD graphics, small flange, sealed cup and cone
bearings, gray color and cro-moly axles
Brakes: XCD 6000 BA-XD00 roller cam,
internal coil spring instead of the bow spring, brake pad is height adjustable,
grey finish with XCD stamped roller plate also available is the BA-XD10
cantilever brake by Dia Compe, grey finish, external spring design
Brake Levers: XD 6000 BL-XD00 still a
large motorcycle style lever, reach adjuster, , coated lever blade, black (uses
the same body as the 9000 series, no coating on the blade and minor hardware
differences) also available was the CL-XD01 which incorporated the index
thumb shifter onto the brake lever body, 6-way shift lever position adjuster,
index/friction right shifter (same basic design as the 9000 except with the 6000
shifters)
Crank: XCD 6000 CW-XD00, grey finish,
triple chain rings, inner 2 rings are oval shaped, 110/74 mm BCD, 28/38/48
rings, 170 or 175mm length with bottom bracket BB-XD00, 68/70mm width
Other: PL-XD00 large square pedals
(black/grey), SP-SU00-L seat post (300 mm length, 25.0, 26.4, 26.6, 27.0,
27.2 diameters) |
