Category:  Stems
Name:  Cinelli 1R (1/Record, early version)
Brand:  Cinelli
Model:  1R
Years:  Late 1970's
Country:  Italy
Weight:  266.33 grams (avg)
View Weight List
Added By: JFischer on 12/17/07
Updated By: kingscoins83 on 02/05/19
Additional Photos - click for full size
Cinelli 1R (1/Record, early version)Cinelli 1R (1/Record, early version)Cinelli 1R (1/Record, early version)Cinelli 1R (1/Record, early version)Cinelli 1R (1/Record, early version)Cinelli 1R (1/Record, early version)
MaterialAluminumMarkingsCinelli on top of extension, winged C logo on front
Bar Clamp Size 26.4Quill Size 22.2
Expander Style ConicalExpander Bolt Size
Binder Bolt Size 6mm Allen Key
General Information

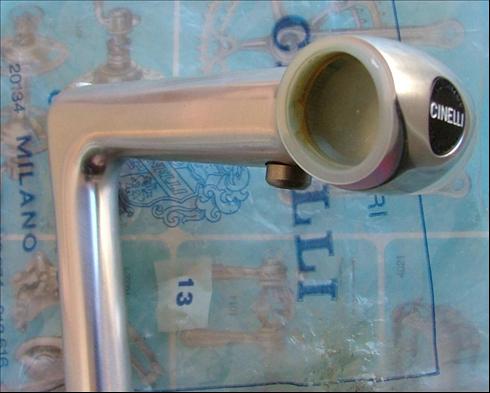

The 1R along with the similar designed XA aero styled stems from Cinelli were introduced in the late 1970's and 1980's.  The 1R's bar clamp design is different from that of the XA and other cinelli stems.  Its bolt pushes a plate up against the bar from the back side, securing the bar in place.  This version has the word 'Cinelli' across the front insert instead of the more common and later winged Cinelli 'C' emblem.  The top engraving is also of an older style than later stems. Came also in French quill size of 22mm - you can tell if it's French by the dimple that it has right after the split in which the expander bolt fits.
Quality:Rarity:


See Incorrect Information? Log-in to submit report.
Additional Resources
Resources:Reference & ChartsCatalogsExternal Resources
Component VariationsView Detailed List  Manage Variations
Variations of Component exist (Component is 1 of 3)BrandGroup
Cinelli 1R (1/Record)Cinelli
Cinelli 1R (1/Record) edition RossinCinelli
Brand Information(click to expand)
A true icon in the cycling industry, Cinelli is well known for their stems and handlebars which came as standard equipment on countless quality European brand bicycles, however they are also known to have made some of the most sought after lightweights by collectors and riders alike the world over.  Few brands can meet, let alone exceed, the level of workmanship and ride quality of Cinelli frames, even those from the 1950's.

User Comments
Sign-in Required
  Loading Comments


By pressing Verify below, you express verification that the photos shown are indeed of the component listed. Please do not verify if you are not sure that all photos are of the correct item. If you identify a photo that is NOT of the correct item, please use the Report feature to flag that photo.

Note: You can not verify photos that you have uploaded.
WeightSourceNotesAdded By
287 GramsUnknown JFischer
271 GramsActual120mm- Version fightfooter
241 GramsActualtitanium screw version kingscoins83
